RAY-D/0.9M/18W/840/RAL9005/100°/FO/IP40
3 845,56 UAH
Luminous flux, lm:
2 630
Efficiency, lm/w:
146
Colour temperature, K:
4000K
Colour rendering index, Ra:
80ra
Beam angle:
100°
Optics type:
Opal
Power, W:
18
W/m:
L1 (21W/m
Ripple factor, %:
<1
Control type:
FO
Length (mm):
852
Body colour:
Black
Material:
Housing – aluminium (powder coated), reflector – plastic
Degree of protection:
IP40
Warranty period:
60 months
Series:
RAY-D
Series code:
0.9M

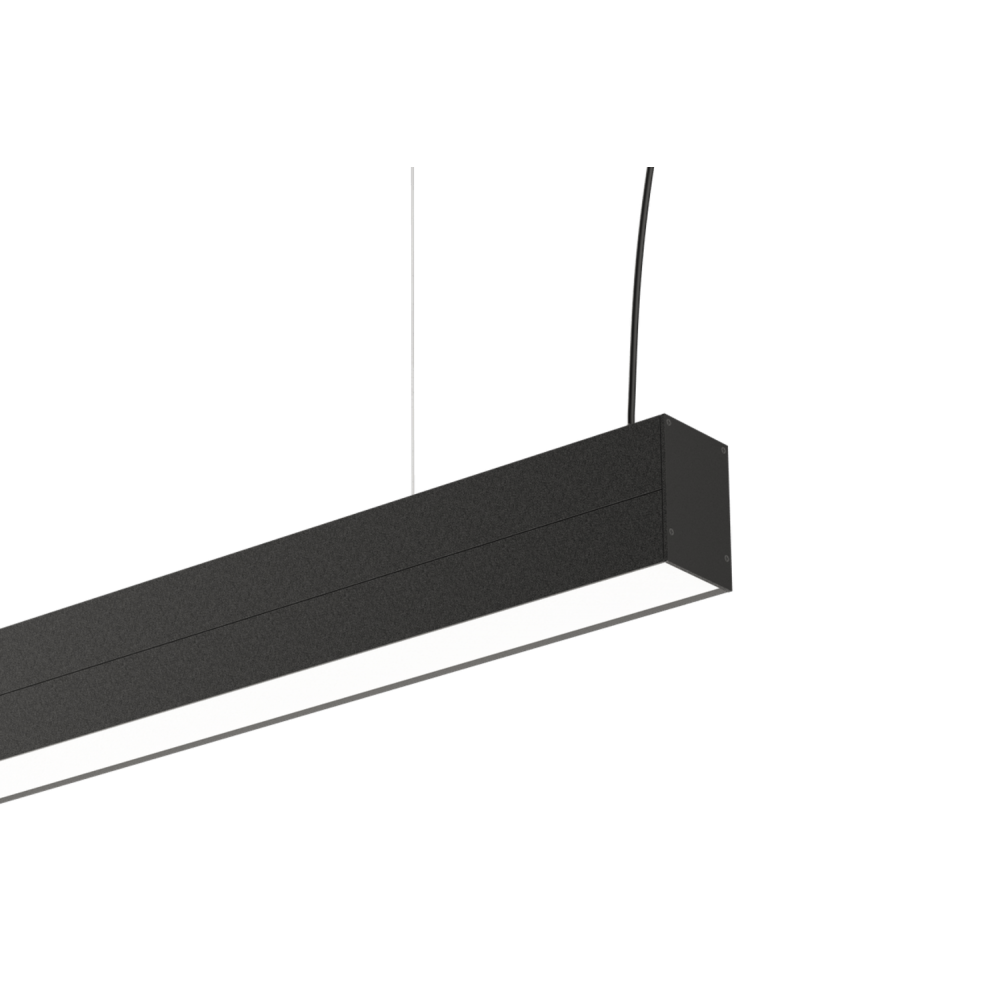

RAY-D linear LED luminaire, 857 mm long, with an opal or microprismatic diffuser for glare-free light. Joins into continuous lines from 580 to 3400 mm with no dark gaps; corner elements available.
Power 18 W (L1, 20 W/m), luminous flux approx. 2,630 lm (146 lm/W, 3,070 lm/m). Colour temperature 4000K, CRI Ra 80, beam angle 100°.
Neutral white light for offices, sales floors and classrooms.
Material: powder-coated aluminium housing, plastic reflector. Housing colour: black. Ingress protection IP40.
Made by Vision Lighting in Ukraine. Available in any RAL colour. We can prepare a lighting design for your project.
Power 18 W (L1, 20 W/m), luminous flux approx. 2,630 lm (146 lm/W, 3,070 lm/m). Colour temperature 4000K, CRI Ra 80, beam angle 100°.
Neutral white light for offices, sales floors and classrooms.
Material: powder-coated aluminium housing, plastic reflector. Housing colour: black. Ingress protection IP40.
Made by Vision Lighting in Ukraine. Available in any RAL colour. We can prepare a lighting design for your project.
